2-Propenoic acid 1-ethylcyclopentyl ester CAS#: 326925-69-3; ChemWhat Code: 565129
Identification
| Product Name | 2-Propenoic acid 1-ethylcyclopentyl ester |
| IUPAC Name | (1-ethylcyclopentyl) prop-2-enoate |
| Molecular Structure |  |
| CAS Registry Number | 326925-69-3 |
| MDL Number | MFCD31716062 |
| Synonyms | 1-ethylcyclopentyl acrylate 326925-69-3 2-Propenoic acid 1-ethylcyclopentyl ester (1-ethylcyclopentyl) prop-2-enoate 1-ethylcyclopentyl prop-2-enoate 1-Ethylcyclopentyl Acrylate (stabilized with MEHQ) MFCD31716062 1-ethylcyclopentylacrylate SCHEMBL680647 E1405 G70758 |
| Molecular Formula | C10H16O2 |
| Molecular Weight | 168.23 |
| InChI | InChI=1S/C10H16O2/c1-3-9(11)12-10(4-2)7-5-6-8-10/h3H,1,4-8H2,2H3 |
| InChI Key | FDOANYJWOYTZAP-UHFFFAOYSA-N |
| Isomeric SMILES | CCC1(CCCC1)OC(=O)C=C |
| Patent Information | ||
| Patent ID | Title | Publication Date |
| CN114276242 | Preparation method of acid-sensitive photoresist resin monomer | 2022 |
| US2012/295201 | COMPOUND, RESIN, PHOTORESIST COMPOSITION, AND METHOD FOR PRODUCING PHOTORESIST PATTERN | 2012 |
Physical Data
| Appearance | Transparent liquid |
Spectra
| Description (NMR Spectroscopy) | Nucleus (NMR Spectroscopy) |
| Chemical shifts, Spectrum | 1H |

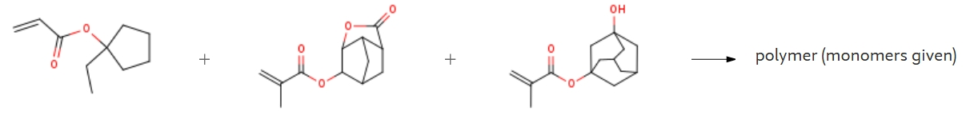

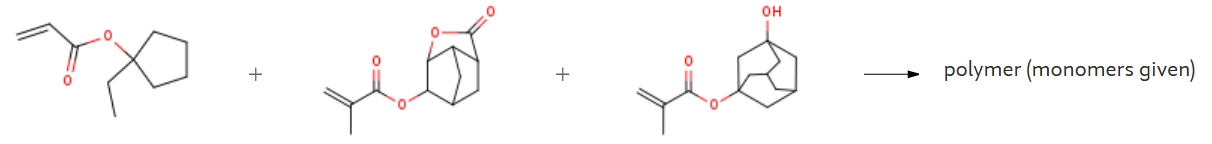

Route of Synthesis (ROS)
| Conditions | Yield |
| With dimethyl 2,2′-azobis(isobutyrate) In butanone at 80℃; for 10h; Experimental Procedure Synthesis Example 14 A monomer solution was prepared by dissolving 55.00 g of 5-oxo-4-oxatricyclo[4.2.1.03,7]nonan-2-yl methacrylate, 11.70 g of 3-hydroxyadamantan-1-yl methacrylate, and 33.31 g of 1-ethylcyclopentyl acrylate in 200 g of 2-butanone, and further adding 4.56 g of dimethylazobisbutyrate. A 1,000 ml three-necked flask containing 100 g of 2-butanone was purged with nitrogen for 30 minutes. Then, while the contents were heated to 80 C with stirring, the above monomer solution was added dropwise over four hours using a dropping funnel. Polymerization was initiated at the start of dropping and continued for six hours. After the polymerization, the polymer solution was cooled with water to 30 C or lower and poured into 2,000 g of methanol. White precipitate produced was collected by filtration. The resulting white powder was washed twice with 400 g of methanol in the form of a slurry, filtered, and dried under reduced pressure for 17 hours at 50 C to obtain a white resin powder. The resin was found to have Mw and Mw/Mn of 8,500 and 1.75, respectively. The result of 13C-NMR analysis confirmed that the resin was a copolymer of 5-oxo-4-oxatricyclo[4.2.1.03,7]nonan-2-yl methacrylate, 3-hydroxyadamantan-1-yl methacrylate, and 1-ethylcyclopentyl acrylate at a copolymerization molar ratio of 53.7:11.1:35.2. This resin is referred to as a “resin (B-10)”. |
Safety and Hazards
| GHS Hazard Statements | Not Classified |
Source: European Chemicals Agency (ECHA)
License Note: Use of the information, documents and data from the ECHA website is subject to the terms and conditions of this Legal Notice, and subject to other binding limitations provided for under applicable law, the information, documents and data made available on the ECHA website may be reproduced, distributed and/or used, totally or in part, for non-commercial purposes provided that ECHA is acknowledged as the source: “Source: European Chemicals Agency, http://echa.europa.eu/”. Such acknowledgement must be included in each copy of the material. ECHA permits and encourages organisations and individuals to create links to the ECHA website under the following cumulative conditions: Links can only be made to webpages that provide a link to the Legal Notice page.
License URL: https://echa.europa.eu/web/guest/legal-notice
Record Name: (1-Cyano-2-ethoxy-2-oxoethylidenaminooxy)dimethylamino-morpholino-carbenium hexafluorophosphate
URL: https://echa.europa.eu/information-on-chemicals/cl-inventory-database/-/discli/details/213446
Description: The information provided here is aggregated from the “Notified classification and labelling” from ECHA’s C&L Inventory. Read more: https://echa.europa.eu/information-on-chemicals/cl-inventory-database
Other Data
| HS Code | |
| Storage | |
| Shelf Life | 1 year |
| Market Price |
| Druglikeness | |
| Lipinski rules component | |
| Molecular Weight | 168.236 |
| logP | 2.567 |
| HBA | 2 |
| HBD | 0 |
| Matching Lipinski Rules | 4 |
| Veber rules component | |
| Polar Surface Area (PSA) | 26.3 |
| Rotatable Bond (RotB) | 4 |
| Matching Veber Rules | 2 |
| Use Pattern |
| 2-Propenoic acid 1-ethylcyclopentyl ester CAS#: 326925-69-3 is an acrylate monomer, and its main role in photoresist is to provide good wear resistance and chemical stability. Its properties make it suitable for use as an active ingredient in photoresists, especially in the field of micro-machining that requires high resolution and high stability. |
