TETRAKIS(DIMETHYLAMINO)TITANIUM CAS#: 3275-24-9; ChemWhat Code: 35746
Identification
| Product Name | TETRAKIS(DIMETHYLAMINO)TITANIUM |
| IUPAC Name | dimethylazanide;titanium(4+) |
| Molecular Structure |  |
| CAS Registry Number | 3275-24-9 |
| EINECS Number | 221-904-3 |
| MDL Number | MFCD00014861 |
| Synonyms | Tetrakis(dimethylamino)titanium(IV) Tetrakis(dimethylamino)titanium 3275-24-9 TDMAT Tetrakis(dimethylamido)titanium(IV) Methanamine, N-methyl-, titanium(4+) salt MFCD00014861 Titanium tetrakis(dimethylammonium) EINECS 221-904-3 Methanamine, N-methyl-, titanium(4+) salt (4:1) Ti(NMe2)4 SCHEMBL45685 C2H7N.1/4Ti C2-H7-N.1/4Ti NSC130237 AKOS015850795 ?TETRAKIS(DIMETHYLAMINO)TITANIUM NSC-130237 Methanamine, N-methyl-, titanium(4) salt D92585 Tetrakis(dimethylamido)titanium(IV), technical grade, >=80% Tetrakis(dimethylamido)titanium(IV), 99.999% trace metals basis Tetrakis(dimethylamido)titanium(IV), packaged for use in deposition systems Tetrakis(dimethylamino)titanium(IV), 99% TDMAT (99.99%-Ti) PURATREM |
| Molecular Formula | C8H24N4Ti |
| Molecular Weight | 224.17 |
| InChI | InChI=1S/4C2H6N.Ti/c4*1-3-2;/h4*1-2H3;/q4*-1;+4 |
| InChI Key | MNWRORMXBIWXCI-UHFFFAOYSA-N |
| Isomeric SMILES | C[N-]C.C[N-]C.C[N-]C.C[N-]C.[Ti+4] |
Physical Data
| Appearance | Yellow liquid |
| Boiling Point, °C | Pressure (Boiling Point), Torr |
| 75 | 3 |
| 69 | 0.1 |
| 110 – 115 | 20 |
| 50 | 0.05 |
| Density, g·cm-3 | Reference Temperature, °C | Measurement Temperature, °C |
| 0.9439 | 4 | 20 |
Spectra
| Description (NMR Spectroscopy) |
| NMR |
| Spectrum |
Route of Synthesis (ROS)

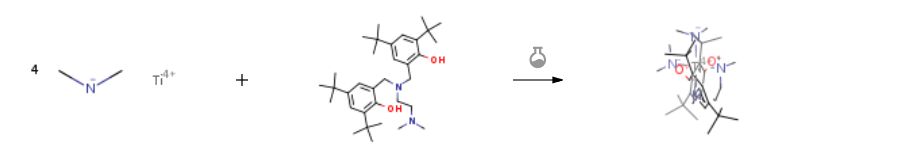

Route of Synthesis (ROS) of Tetrakis(dimethylamino)titanium CAS 3275-24-9
| Conditions | Yield |
| In tetrahydrofuran at 25℃; for 12h; Experimental Procedure (2) in the glove box, the SalanH 2 (1.57g, 3 . 00mmol) added to the tetrahydrofuran solution of Ti[N (CH 3) 2] (0.67g, 3 . 00mmol) in tetrahydrofuran solution, the system to change from a light yellow to dark red solution, 25 °C stirring reaction approximately 12h, tetrahydrofuran, add 20 ml hexane extraction two, filtering, supernatant fluid is concentrated, is placed at room temperature until the precipitated red crystal (1.86g), yield 94%. | 95% |
| In toluene at 20℃; for 12h; | 90% |
Safety and Hazards
| Pictogram(s) |  |
| Signal | Danger |
| GHS Hazard Statements | H225 (100%): Highly Flammable liquid and vapor [Danger Flammable liquids] H260 (90.54%): In contact with water releases flammable gases which may ignite spontaneously [Danger Substances and mixtures which in contact with water, emit flammable gases] H302 (36.49%): Harmful if swallowed [Warning Acute toxicity, oral] H314 (100%): Causes severe skin burns and eye damage [Danger Skin corrosion/irritation] H331 (29.73%): Toxic if inhaled [Danger Acute toxicity, inhalation] |
| Precautionary Statement Codes | P210, P223, P231+P232, P233, P240, P241, P242, P243, P260, P261, P264, P270, P271, P280, P301+P317, P301+P330+P331, P302+P335+P334, P302+P361+P354, P303+P361+P353, P304+P340, P305+P354+P338, P316, P321, P330, P363, P370+P378, P402+P404, P403+P233, P403+P235, P405, and P501 (The corresponding statement to each P-code can be found at the GHS Classification page.) |
Other Data
| Transportation | Under the room temperature and away from light |
| HS Code | |
| Storage | Under the room temperature and away from light |
| Shelf Life | 1 year |
| Market Price |
| Druglikeness | |
| Lipinski rules component | |
| Molecular Weight | 224.185 |
| logP | |
| HBA | 1 |
| HBD | 0 |
| Matching Lipinski Rules | 3 |
| Veber rules component | |
| Polar Surface Area (PSA) | 0 |
| Rotatable Bond (RotB) | 0 |
| Matching Veber Rules | 2 |
| Bioactivity |
| In vitro: Efficacy |
| Quantitative Results |
| Toxicity/Safety Pharmacology |
| Quantitative Results |
| Use Pattern |
| Tetrakis(dimethylamino)titanium CAS#: 3275-24-9 is commonly used as a precursor material in MOCVD for growing III-V compound semiconductor materials like gallium nitride (GaN) and gallium arsenide (GaAs). These materials are essential for the fabrication of optoelectronic devices such as laser diodes and photodetectors. |
